Image may not reflect selected features

No Image
Available

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4

Satco Products Inc.
Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4

Part Number: S11884

UPC: 00045923118845

List Price:

/ / 1

($18.99 / 1)

WAS

Call for Price

1018 Available from Manufacturer

Quantity:

Finish :

White

Return

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Recommended Items

Product Overview

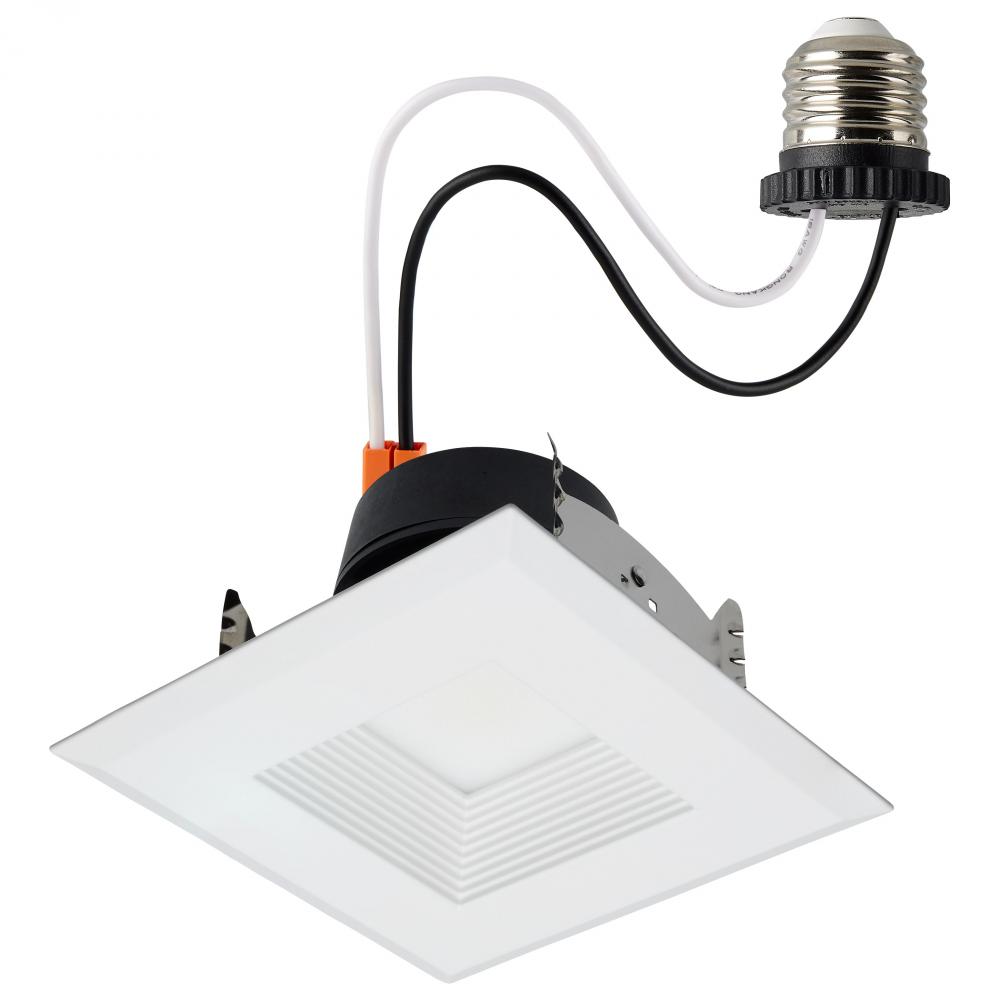

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 Inch; Square Shape; White Finish; 120 Volts

Specifications

Details

Product Height:

3.07"

Product Width:

5.31"

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Length:

5.31

Lumens:

600L/750L/900L

Ship Carton Height:

5.51

Ship Carton Length:

5.51

Ship Carton Width:

3.23

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.052/0.063/0.080A

ANSI Base:

E26 Adapter

Beam Spread:

CA Prop-65:

Lead

Can Size:

4 in.

Carton Cubic Feet:

0.0567

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.00 in. Cutout

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

103.45/107.14/94.74 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-3354722

FCC Compliant:

Yes

Feature 1:

CCT and Wattage Selectable

Feature 2:

Stepped Baffle for Reduced Glare

Feature 3:

Dimmable

Feature 4:

E26 Adapter Included

Feature 5:

90 CRI

Feature 6:

Wet location rated

Feature 7:

Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements

Feature 8:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Square

IC Rated:

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's S11884 4-inch square field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users c

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Color Box

Power Factor:

0.94

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enha

Safety Listing:

cETLus - Classified

SDS class:

LED_Fixture

Short Description:

9.5WLED/DLR/4/WS/5CCT/SQ/DB

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<25%

Trim Color:

White

Wattage Selectable:

Yes

Weight Lb.:

0.51

Manufactured By:

Satco Products Inc.

Satco Products Inc. Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4

Satco Products Inc.
Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4
